Our Essential Maintenance Checklist for CO2 Laser Cutters
Last Updated - November 2024
So, you've joined the laser-cutting revolution! Welcome to the world of precision cuts, intricate engravings, and endless creative possibilities. But before you dive headfirst into your next project, let's talk about something crucial: laser cutter maintenance.
Like any high-performance machine, your laser cutter needs regular TLC to stay in top shape. Neglecting maintenance can lead to frustrating performance issues, costly repairs, and even safety hazards. But don't worry, we're here to help!
With our comprehensive guide, we'll cover everything from daily cleaning routines to essential servicing checklists, to ensure your laser cutter continues to deliver stunning results for years to come.
Why Do Laser Cutters Need Maintenance?
Proper maintenance is essential for maximising the lifespan and performance of your laser cutter and, most importantly, minimising downtime. By keeping components clean and well-maintained, you can avoid costly repairs and ensure optimal conditions when laser cutting and engraving. The intense laser-cutting process generates fumes, smoke, and debris that can accumulate within the machine and its accessories, potentially causing system failures and overheating. Regular inspections and preventive maintenance are essential to avoid breakdowns and costly downtime. Additionally, it's also a great way to familiarise yourself with the inner workings of your CO2 laser.
How To Maintain Your Laser Cutter
By following a regular maintenance schedule, you can prevent costly downtime, extend the life of your equipment, and ensure optimal performance for all your laser cutting and engraving projects.
This checklist provides a comprehensive guide to essential laser machine maintenance tasks, helping you keep your laser in top condition and achieve consistently excellent results.
Daily Laser Machine Maintenance Checklist
Inspect and Clean Lens
To maintain optimal performance and prevent damage, clean the lens of your CO2 laser at least daily, ideally both before and after each use. Additionally, we recommend checking the lens between jobs that produce large amounts of fumes and debris, such as acrylic or wood, for example.
A dirty lens can significantly reduce your CO2 laser's power and accuracy. Debris on the lens can scatter the laser beam, causing inconsistent laser cutting and engraving results. Also, when the energy of the laser beam hits the debris on the lens, it gets absorbed and converted into heat, which can cause the debris to reach extremely high temperatures, potentially burning into the delicate surface of your CO2 lens rendering it unusable.
Check and Clean Mirrors
Often forgotten about yet working tirelessly behind the scenes, bouncing that powerful beam around, and yet they rarely get the appreciation they deserve. So, similar to your lens, you should also check and clean the mirrors on your laser cutter each day. Even a thin layer of dust or debris can scatter or subtly change the angle of the reflection, leading to inconsistent laser cutting or engraving results.
Clean Machine Bed
This is the big one. Debris on the laser bed, especially flammable materials like wood or paper scraps, can easily ignite when hit by the laser, which can damage your workpiece and the laser bed itself or, in the worst case, lead to a full-blown fire (trust us we've seen it). Additionally, debris can create an uneven surface, causing the laser to lose focus or cut at an incorrect depth, leading to inconsistent results.
Weekly Laser Machine Maintenance Checklist
Clean Air Assist System
You got it! Keeping that air assist nozzle clean is super important for a happy laser. On a weekly basis, we recommend giving your air assistant nozzle a good clean. Debris can build up over time and clog the nozzle, disrupting the airflow, which can result in scorching or inconsistent results when laser cutting or engraving. That same airflow also helps minimise any debris from being chucked back up into the laser head, helping keep the lens clean, which, as we know, is vital for optimal laser performance.
Lubricate Rails and Bearings
The laser head in your CO2 laser cutter needs to glide smoothly and precisely to achieve those perfect cuts and engravings. That's where the rails and bearings come in, guiding its movement along the X and Y axis. Keeping the rails and bearings lubricated is crucial for minimising friction between the moving parts, allowing the laser head to move effortlessly. Additionally, friction generates heat and wear, which can damage the rails and bearings over time.
To clean and lubricate the rails and bearings, you'll want to turn off your laser cutter before performing any maintenance. Before applying lubricant, gently wipe down the rails with a clean, lint-free cloth to remove any dust or debris. Consult your laser cutter's manual for the recommended lubricant type. Typically, a light machine oil or a specialised lubricant for linear rails is suitable. Avoid using WD-40 or other general-purpose lubricants, as these can attract dust and debris and are too thin to be effective as they will run off and make a mess.
When it comes to applying the lubricant, it's essential to remember little goes a long way! Apply a thin layer of lubricant along the rails. Avoid over-lubricating, as this can attract dirt and create a sticky mess.
Inspect and Clean Fume Extraction System
Your CO2 laser's fume extraction system is its lifeline, whisking away harmful fumes and dust to protect both you and the machine.
To ensure your laser cutter's exhaust system is effectively removing harmful fumes and dust, regularly check its airflow. You should feel a strong suction at the exhaust vent, typically located under the laser bed or at the side vents. A weak airflow suggests a potential blockage.
To clean it, you'll want to turn off your laser cutter before performing any maintenance. After that, you'll need to detach the hoses and ducts. We recommend using a long brush, hoover or compressed air to remove any dust or debris; this is also an excellent opportunity to check for any holes or cracks in your ducting that might need repair or replacement.
Maintaining Your Chiller Unit
If your CO2 laser cutter has a water cooling system, it plays a vital role in keeping the laser tube operating at the correct temperature. If your cooling system water levels are too low or there is a blockage, your laser tube will overheat, which can reduce the laser's power and efficiency, leading to inconsistent cutting and engraving results, or worse yet it can crack the glass and break the laser tube.
To clean your laser chiller unit cooling system, turn off the machine and remove the side cover. Use a soft brush or compressed air to clean off any dirt or dust that may have built up on the radiator fins, then replace the cover and turn on the machine. If the de-ionised water is particularly bad, then this can be drained and replaced, ensuring once the water is circulating again that there are no air bubbles trapped in the laser tube.
Important: Use only distilled or de-ionised water in your laser cutter's cooling system. Tap water contains minerals that can build up and cause blockages, as well as traces of metals that can rust components.

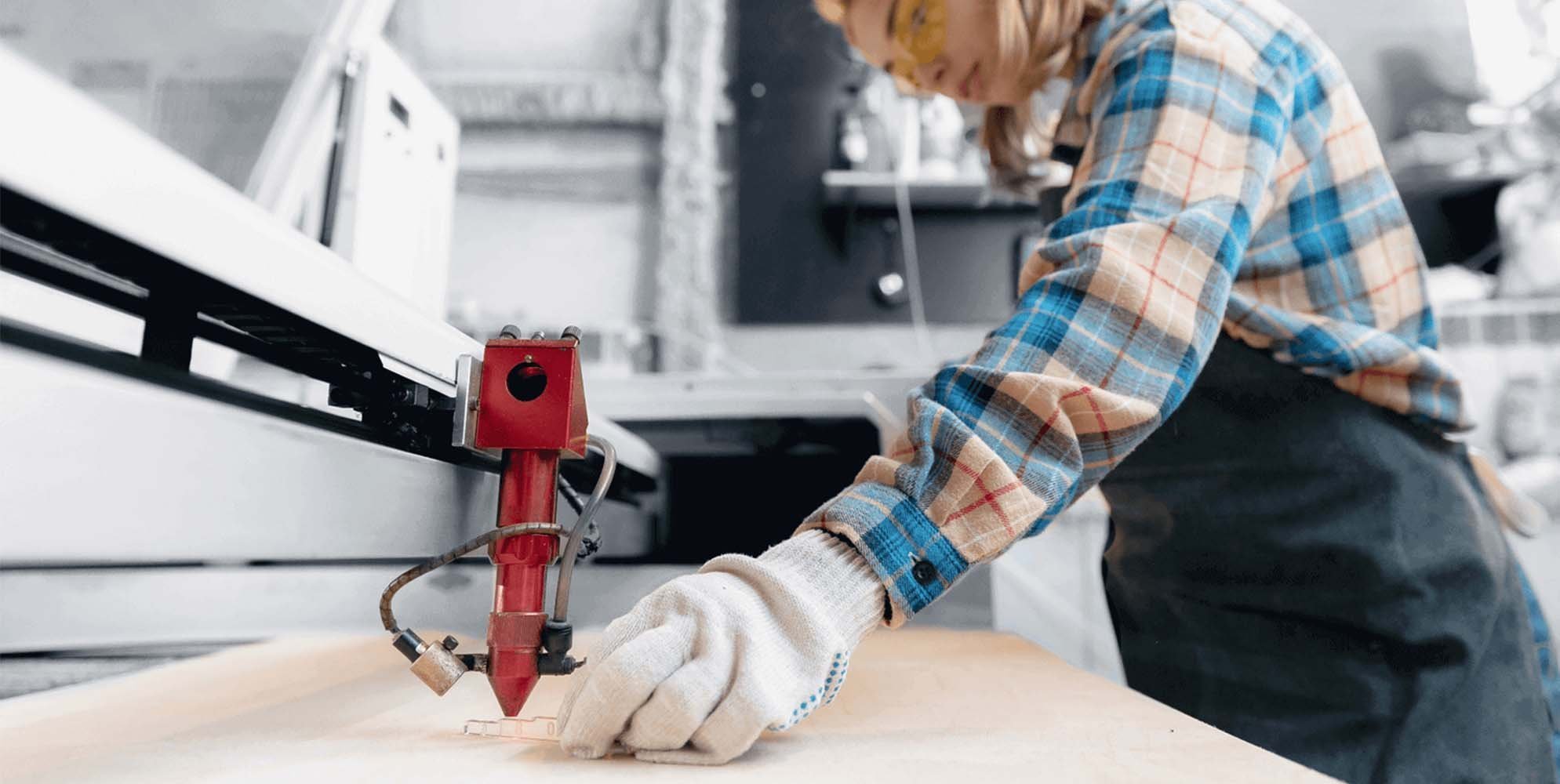

Check the Focus of the Lens
Finding the perfect focal point for your laser beam is crucial for achieving clean, precise cuts and engravings. The focal length is the distance between the lens and the material's surface where the laser beam converges to its smallest, most intense point, which is where the laser's energy is concentrated. Typically the focal distance between the nozzle and the materials surface is 6mm, but you should check this as each machine's set-up differs. The easiest way to do this is by starting this distance at 6mm, and engraving a line on some wood. Then, adjust the height to say 10mm and engrave another line. If the 10mm focal height line is thicker, then we know the beam is going out of focus, and so the 6mm thin line is correct.
You can do this with multiple lines at multiple heights and then you will be able to select the focal height that offers the thinnest line to ensure your focal height is correct.
Oil Laser Bed’s Lifting Mechanism
One often overlooked aspect of laser bed maintenance is ensuring its smooth and effortless movement along the Z-axis (up and down). Just like any mechanical system with moving parts, the laser bed's lifting mechanism experiences friction. Lubrication minimises this friction, allowing the bed to rise and fall smoothly with minimal resistance.
To lubricate your laser bed's lifting mechanism, you'll first need to turn off your machine and refer to your laser cutter's manual for specific instructions on lubricating the lifting mechanism. It will identify the appropriate lubrication points and the recommended lubricant type.
Once lubricated, move the laser bed up and down several times to distribute the lubricant evenly and wipe away any excess using a clean cloth.
Annual Laser Machine Maintenance Checklist
Schedule your annual Laser Machine Service by an engineer.
Book a complete service for your laser cutter. A qualified technician can perform a thorough inspection, replace any worn parts, and ensure optimal performance by calibrating your laser machine for optimal results.
By following a regular maintenance schedule, you can ensure the longevity and optimal performance of your laser machine, minimise downtime, and prevent costly repairs.
Additional Tips:
Keep work surface clean at all times
Don't try to repair your laser cutting machine by yourself - get professional help
Keep your laser cutter away from direct sunlight
Don't use a laser engraver near any possible heat source, including vents and air ducts
Properly maintain your machine with a cleaning kit (wipes, alcohol) provided by the manufacturer
Avoid oil or grease build-up
Periodically verify that safety interlocks are working correctly.
Always ensure your laser cutter is fully assembled and covered before turning it on.
Save Time & Money: Laser Machine Maintenance Concluded
Laser cutters require regular maintenance to ensure optimal performance, longevity, and safety. Clean optics (lens and mirrors) maintain cutting precision and power, while proper alignment ensures accuracy. A clean air assist system prevents material ignition and provides clean cuts. Lubrication of moving parts reduces wear and tear, extending the machine's lifespan, while regular inspections can identify potential issues before they become significant problems. Maintaining a clean exhaust system prevents fires and ensures proper ventilation, protecting users from harmful fumes. Regular maintenance also prevents costly repairs and maximises efficiency by reducing energy consumption and material waste. Finally, calibration ensures consistent results and prevents material damage due to inconsistent power or inaccurate cutting. Ultimately, a well-maintained laser cutter operates at peak performance, lasts longer, and provides a safe working environment.
